Cartridge filtration units generally operate most effectively and economically on applications having contamination levels of less than 100 ppm. For heavier contamination applications, cartridges are normally used as final polishing filters.

It can be generally stated that if the size of filter surface is increased, higher flows are possible, the filter last longer, and the dirt holding capacity increases. Cartridge filters are normally designed disposable: this means that they have to be replaced when the filter is clogged.

Cartridge filter can be surface or depth-type filter: depth-type filters capture particles and contaminant through the total thickness of the medium, while in surface filters (that are usually made of thin materials like papers, woven wire, and cloths) particles are blocked on the surface of the filter.

Surface filters are best if you are filtering sediment of similar-sized particles. If all particles are i.e. five micron, a pleated 5-micron filter works best because it has more surface area than other filters. Compared with pleated surface filters, depth filters have a limited surface area, but they have the advantage of depth.

Applications of cartridge filters:

• Pre RO water
• Chemicals
• Beverages
• Solvents
• Compressed air
• Cosmetics
• Alcohol

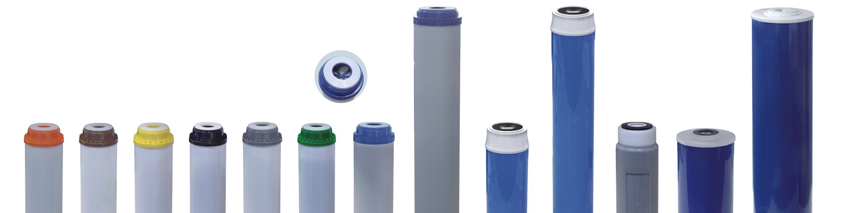

THERE ARE VARIOUS TYPES OF CARTRIDGE FILTERS:

WOUND CARTRIDGE FILTERS:

Material: natural or synthetic yards, which are wounded around a central tube or former.
Filtration of: sand, scale, lime, rust, fine particles.
Applications: drinking water, boilers, washing machines, pre-filtration in water treatment, sea water desalination, process water, chemical processes.
Filtration range: 0.5 - 150 micron
Length: 5-10-20-30-40".

MELT-BLOWN CARTRIDGE FILTERS:

Material: one-piece cordless construction, consisting of pure polypropylene micro fibers, thermally bonded to prevent any fiber migration.
Filtration of: sand, scale, lime, rust, fine particles.
Applications: Water treatment, pure water pre-filtration, fine chemicals, reverse osmosis, sea water desalination, beverages, solvents, cosmetics.
Filtration range: 1-75 micron
Length: 5-10-20-30-40".

ACTIVATED CARBON CARTRIDGE FILTERS:

Material: Polypropylene fleece and net, or washed polypropylene yarn or polyester felt filtering medium and granular activated carbon.
Filtration of: color, smell, taste contamination, pesticides, chlorine, organic substances.
Applications: Potable water, washing machines, anti-chlorine treatment in alimentary, chemical and pharmaceutical industry, pre-treatment for reverse osmosis units.
Filtration range: 1-25 micron
Length: 4-5-7-10-20-30".

STAINLESS STEEL CARTRIDGE FILTERS:

Material: stainless steel filtering net with a polypropylene inner core.
Filtration of: sand, scales, rust.
Applications: drinking water, washing machines, boilers, pre-filtration for pumps, irrigation systems, protection of industrial systems.
Filtration range: 70 micron
Length: 4-5-7-10-20".

PLEATED CARTRIDGE FILTERS:

Material: Pleated polypropylene or stainless steel filtering net with a polypropylene inner core.
Filtration of: sand, scales, rust.
Applications: Drinking water, boilers, washing machines, pre-filtration of water pumps, irrigation systems, protection of industrial installations.
Filtration range: 50 micron
Length: 4-5-7-10-20".
